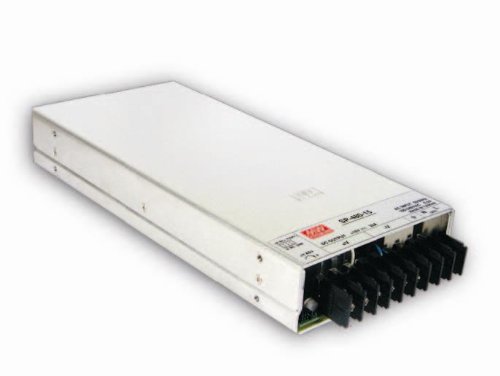

24V 22A 480W Switching Power Supply with Active PFC - Reliable Power for LED Displays, 3D Printers & Industrial Equipment

Features:Universal AC input / Full rangeBuilt-in active PFC functionProtections: Short circuit / Overload / Over voltage / Over temperatureForced air cooling by built-in DC fanOptional remote ON/OFF control100% full load burn-in test3 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)AC input voltage range:88~264VACAC inrush current (max.):Cold start, 40A at 230VACDC adjustment range:±10% rated output voltageOverload protection Range:105%~135%Overload protection Type:Constant current limiting, auto-recoveryOver voltage protection:115%~140%Withstand voltage:I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minuteWorking temperature:-20~+60°CSafety standards:UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V)EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, GB9254Connection:9P / 11mm pitch terminal block with coverDimension:(LxWxH):278x127x43Case No.:929GPacking:6pcs / 11.3kg
